Paidi KT12

Overview

派迪KT12 (1).png

派迪KT12 (8).png

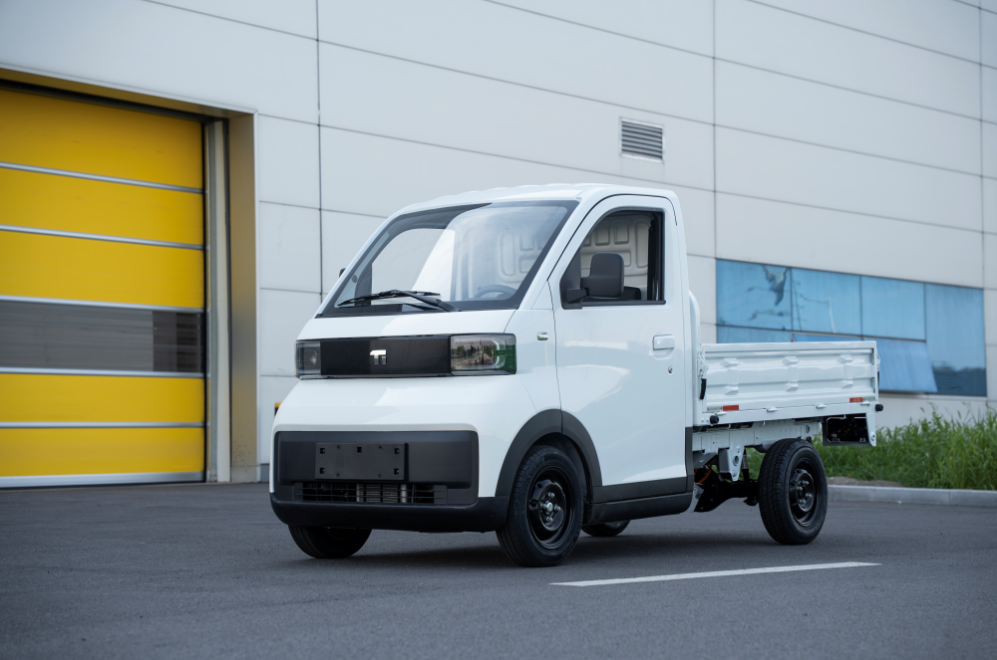

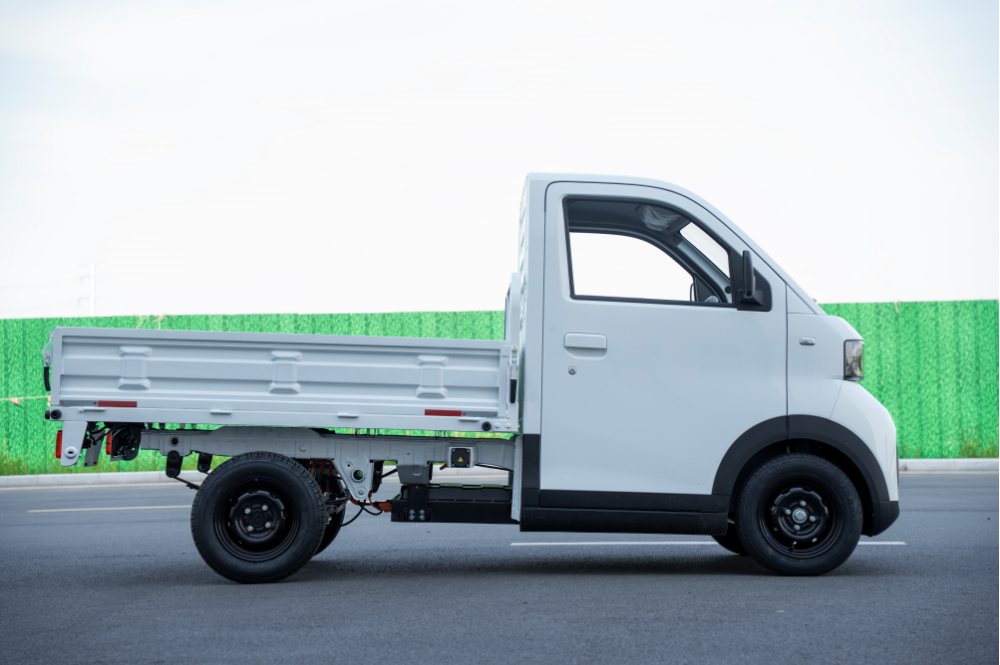

Flatbed: 3514×1300×1720mm, cargo bed 1790×1220×325mm, curb weight 690kg, gross weight 1265kg

派迪KT12 (2).png

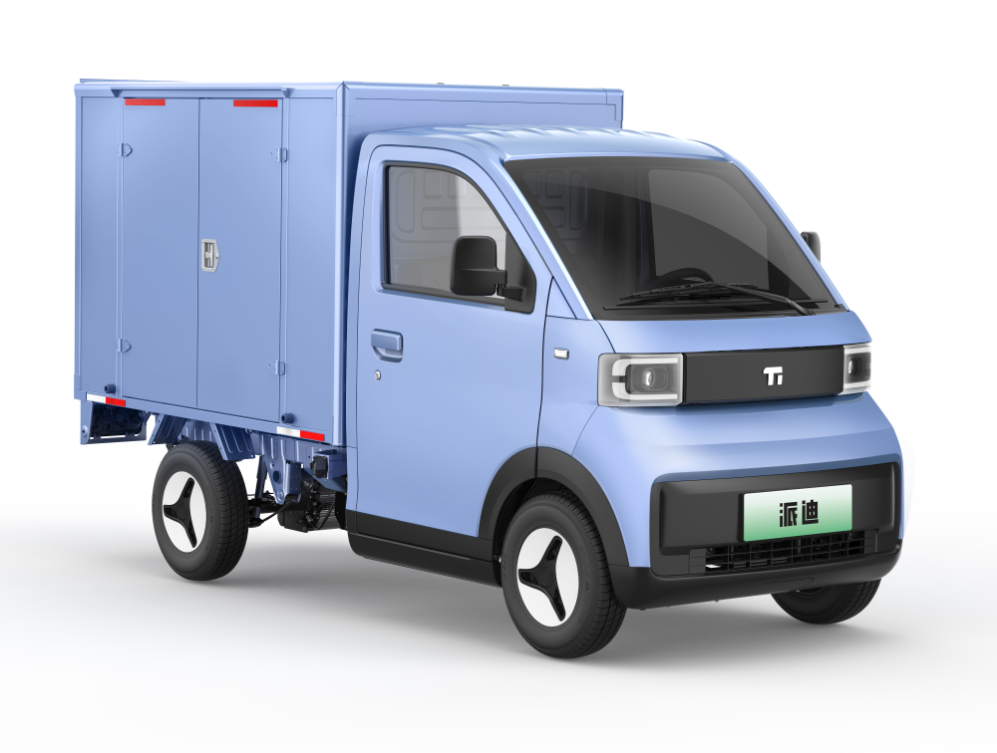

Box truck: 3534×1300×1943mm, cargo box 1825×1240×1200mm (2.8m³), curb weight 760kg, gross weight 1335kg

派迪KT12 (4).png

派迪KT12 (3).png

Performance

派迪KT12 (6).png

派迪KT12 (7).png

派迪KT12 (5).png

Configuration

Chery Paidi KT12

Basic Parameters

• Flatbed: 3514×1300×1720mm, cargo bed 1790×1220×325mm, curb weight 690kg, gross weight 1265kg

• Box truck: 3534×1300×1943mm, cargo box 1825×1240×1200mm (2.8m³), curb weight 760kg, gross weight 1335kg

• Wheelbase 2200mm / Ground clearance 140mm / Turning radius 4.2m

• Rated payload 500kg / Range 150km / Top speed 45km/h

• Tires: Front 145/70 R12, Rear 145R12LT 6PR

Motor & Battery

• PMSM motor: Rated 6kW / Peak 12kW

• LFP battery: 9.98kWh, natural air cooling

• Charging power: 3.3kW

Chery Paidi mini truck

Application Scenario:

Local express delivery, community delivery, fresh food cold chain, street vending and markets, small-scale retail, township freight transport, home services and moving, small construction materials, mobile vendors, community group buying, urban-rural micro-logistics, overseas suburban delivery.
