| 立米商用车（河北）有限公司 Limi Commercial Vehicle (Hebei) Co., Ltd. LM6700中巴公交车型技术参数及配置价格表 LM6700Technical Specifications and Configuration Price List of China-Pakistan Bus Models | |||||
| COMPLETE VEHICLE SPECIFICATION | |||||
| 整车参数 | 长（mm） | Length |
| ||
| 宽（mm） | Width | 2240 | |||
| 高（mm） | Height | 2850 | |||
| 轴距（mm） | Wheelbase | 4300 | |||
| 前悬/后悬（mm） | Front/Rear overhang | 11150/1650 | |||
| 前/后轮距（mm） | Front/Rear tread | 1830/1625 | |||
| 接近角/离去角（°） | Angle of approach/Departure | 18度/10度 | |||
| 整备质量（Kg） | Curb weight | 5300 | |||
| 最大总质量（Kg） | Maximum total mass | 8000 | |||
| 轴荷（Kg） | Axle load | 3000/5000 | |||

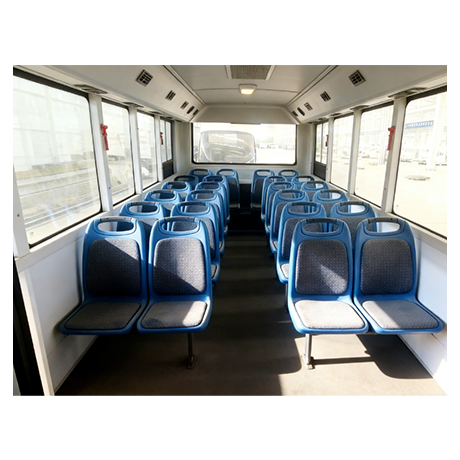

| 座位数（可定制） | Seat (Customizable) | 坐席18人站席10-20人 Seat 18 homo sapiens, standing room 10-20 homo sapiens | |||
| 最高车速（Km/h） | Maximum speed | 80-100 | |||

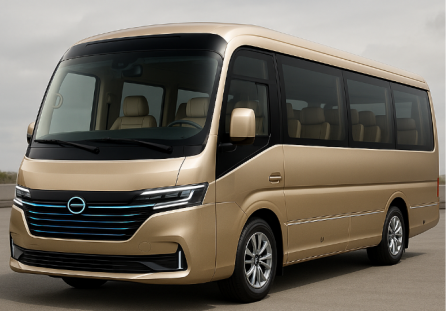

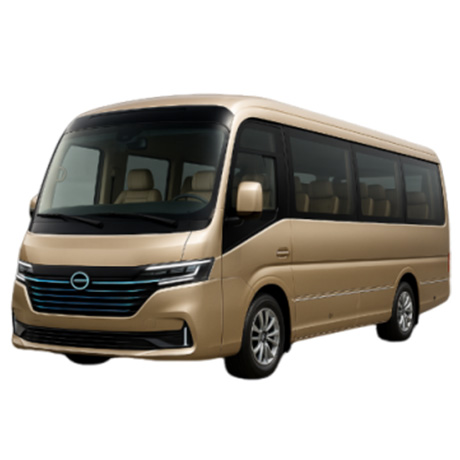

| 最大爬坡度 | Maximum gradability | ≥20％ | Design Option 1（造型方案1） | ||
| 最小离地间隙（mm） | Minimum ground clearance | ≥180 | |||
| 最小转弯直径（m） | Minimum turning radius | ≤21 | |||
| 续航里程（Km） | Cruise mileage | 170-450（可选Optional） | |||
| CHASSIS SPECIFICATION | |||||
| 类型 | 系统 | Items | 规格型号 | Specification | Remarks |
| 底盘配置 | 驱动电机 | Motor | 150kw、1700N.m | 150kw、1700N.m | |
| 前桥 | Front axle | 3T、鼓式 | |||
| 后桥 | Rear axle | 5T、鼓式 | 5T、drum type | ||
| 悬架系统 | Suspension | 前3后4钢板弹簧 | Front 2rear 2 air suspension | ||
| 轮胎 | Tyre | 215/75R17.5、14PR | 215/75R17.5、14PR | ||
| 胎压监测 | TPMS | 有 | YES | ||
| 转向系统 | Steering system | 电动助力转向 | Electric power steering | ||
| 方向盘 | Steering wheel | φ450、四幅 | φ450 | ||
| 制动系统 | Braking system | 双回路气制动，前盘后鼓 | Dual circuit air brake, front disc and rear drum | ||
| ABS | ABS | ABS | ABS | ||
| 冷却系统 | Cooling system | 水冷 | Water cooling | ||
| 膨胀水箱 | Expansion water tank | 有 | YES | ||
| 集中润滑系统 | Auto greasing | 有 | YES | ||
| 随车工具 | Tool kit | 有 | YES | ||
| BODY SPECIFICATION | |||||
| 车身配置 | 驾驶方向 | Drive mode | 右舵 | RHD | |
| 前挡玻璃 | Front windshield | 夹胶玻璃 | Laminated glass | ||
| 后挡玻璃 | Rear windshield | 钢化玻璃 | Hardened glass | ||
| 侧窗玻璃 | Side window | 内嵌推拉窗 | Inner sliding window | ||
| 顶窗和换气扇 | Roof hatch | 1个带换气扇的安全顶窗 | 1 hatch with ventilation fan | ||
| 乘客门 | Passenger door | 折叠门 | folding door type | ||
| 侧舱门 | Side cabin door | 冲压侧舱门 | Stamping side hatch | ||
| 尾舱门 | Rear cabin door | 冲压尾舱门 | Stamping tail hatch door | ||
| 后视镜 | Rearview mirror | 铁杆式 | Rack type | ||
| 地板 | Floor | 冲压型材加衬板 | Stamped profiles with backing plates | ||
| 地板革 | Floor cover | 防滑地板革 | Anti-slip leather | ||
| 司机椅 | Driver's seat | 手动调节, 带三点安全带 | Manually Adjustable, with three-point belt | ||
| 乘客座椅 | Passenger seat | 17只旅游座椅（17+1） | 17tourist seats | ||
| 遮阳帘 | Driver's Sunshield | 司机前、侧 | Front and side | ||

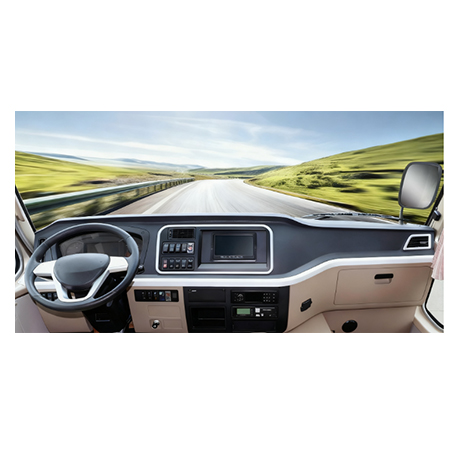

| 仪表台 | Instruments | PU硬发泡+PVC革 | PU Foaming+PVC leather | ||
| 风道 | AC vent | 发泡覆皮 | Foaming+PVC leahter | ||
| 内饰 | Interior trimming | ABS吸塑成型内饰 | ABS molding | ||
| 防护栏 | Protection bar | 有 | Yes | ||
| 台阶踏步灯 | Stair light | 有 | Yes | ||
| 车内灭火器 | Extinguisher | 2个4Kg | 2*4kg | ||
| 消防安全锤 | Safety hammer | 4个 | 4 | ||
| 油漆 | Paint | 普通漆 | Solid color paint | ||
| 车内乘客扶手杆 | Armrest for passengers in the vehicle | 有 | Yes | ||
| 其他 | Others | 如有特殊要求，请列明 | please specify if any | ||
| ELECTRICAL SPECIFICATION | |||||
| 电气配置 | 电池组 （磷酸铁锂电池） | Power Battery pack (Lithium iron phosphate battery) | 175kwh电池包Battery pack | 续航Range 350-450 Km | 续航可选Range options available |
| 141kwh电池包Battery pack | 续航Range 280-350 Km | ||||
| 121kwh电池包Battery pack | 续航Range 240-300 Km | ||||
| 100kwh电池包Battery pack | 续航Range 200-250 Km | ||||
| 81.1kwh电池包Battery pack | 续航Range 170-205 KM | ||||
| 高压控制柜 | PDU | CATL | 170-205 | ||
| 整车控制器 | VCU | 有 | Yes | ||
| 空调 | A/C | 顶置单冷空调，14000kcal | Roof mounted, only cooling, 14000Kcal/h | ||
| 蓄电池 | Battery | 100Ah*2 | 100Ah*2 | ||
| 雨刮器 | Wiper | 普通雨刮 | single motor, double blades | ||
| 仪表 | Instruments | 三级总线 | CAN system | ||
| 行车记录仪 | Tachograph | 预留线束，可加装 | keep the wiring | ||
| 电子钟 | Digital clock | 有,内视镜一体式 | Yes, with interior mirror | ||
| 高位刹车灯 | Height brake light | 有 | Yes | ||
| 视听系统 | Audiovisual system | Mp5 播放器 | MP5 displayer | ||
| 高压舱灭火器 | Fire extinguisher for HV cabin | Yes | Yes | ||
| 电动除霜器 | Electric defroster | 有 | Yes | ||
| 前门遥控门锁 | Door remote controller | 有 | Yes | ||
| 倒车雷达 | Reverse Radar | 有 | Yes | ||
| 车载WIFI | WIFI | 选装 | Optional | ||
| 喇叭 | Horn | 电喇叭 | Electric horn | ||
| 充电口 | Charging receptacle | 1个，中国国标 | 1 unit.Chinese National Standard | ||
| GPS导航 | GPS Navigation | 选装 | Optional | ||
| LED电子报站系统 | LED Electronic Stop Announcement System | 选装 | Optional | ||
| 车内监控系统 | In-car surveillance system | 选装 | Optional | ||
| 其他 | Others | 如有特殊要求，请列明 | please specify if any | ||
| 其他 | 鉴于客车具体的配置、布置需要与用户沟通，按客户的要求实现，本车型的配置为基本配置，具体按与客户沟通确定的为准。 Given that the specific configuration and arrangement of the bus require communication with the customer and are to be implemented according to the customer's requirements, the configuration of this model is the basic configuration, with the specifics to be determined based on communication with the customer. | ||||

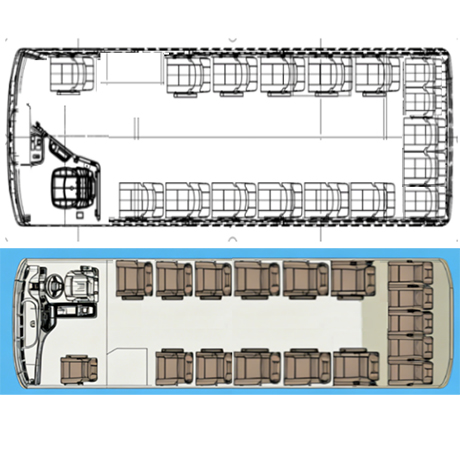

| 车型配置、续航、造型即车内布局可定制 Vehicle configuration, range, design, and interior layout can all be customized. | |||||
| 质保 | 整车 | Whole vehicle | 2年或10万公里 | 2 years or 100,000 kilometers | |
| 电池电机、电控质保 | Warranty for batteries,motors, and electronic controls | 5年或200000公里 | 5 years or 200,000 kilometers | ||
| 车型报价 | FOB青岛港价格 FOB Qingdao Port price | 动力电池包容量(kwh) Power battery pack capacity | 续航里程（Km) Range（Km) | FOB青岛港（人民币） FOB Qingdao Port (RMB) | FOB青岛港（美元） FOB Qingdao Port (USD) |
| 175kwh电池包Battery pack | 350-450 Km | 人民币 455000元 | 美元 65000元 US$65,000 | ||
| 141kwh电池包Battery pack | 280-350 Km | 人民币：430000元 | 美元 61500元 US$61,500 | ||
| 121kwh电池包Battery pack | 240-300 Km | 人民币：415000元 | 美元 59300元 US$59,300 | ||
| 100kwh电池包Battery pack | 200-250 Km | 人民币：400000元 | 美元 57200元 US$57,200 | ||
| 81.1kwh电池包Battery pack | 170-205 KM | 人民币：385000元 | 美元 55000元 US$55,000 | ||
| 价格说明Explanation | 车型价格以客户最终要求的配置的实际价格为主 The price of a vehicle model is based on the actual cost of the configuration specified by the customer. | ||||

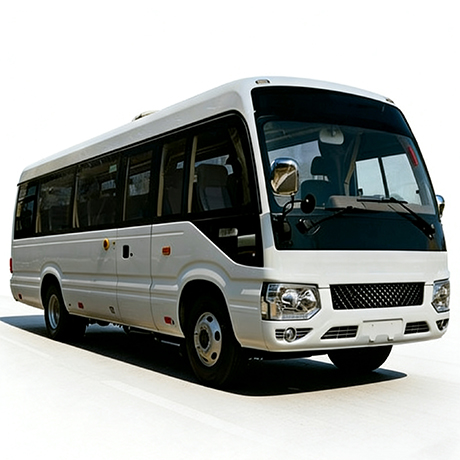

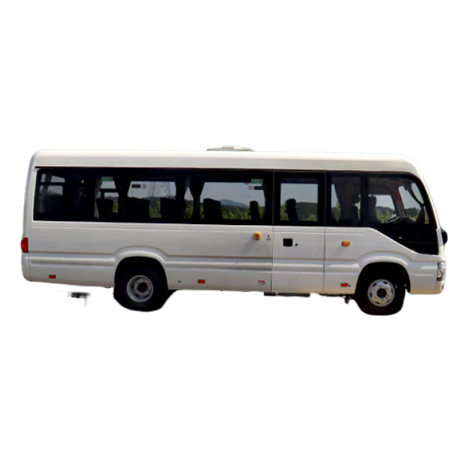

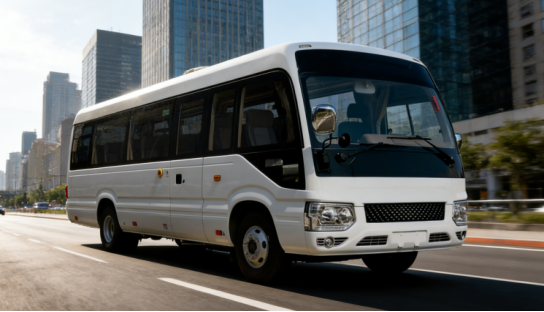

Liming China-Pakistan bus, 18 seats, with extra standing room, pure electric
