LIMI450EV微客及微卡_Shijiazhuang Rongchang Automobile Sales Co., Ltd

COMPLETE VEHICLE SPECIFICATION
LM6450系列微客、微卡技术参数及配置价格 LM6450 Series Micro Passenger and Micro Truck Technical Parameters and Configuration Pricing
	车型类别	Vehicle Category	高压客运版 High-speed passenger version	低压客运版 Low-pressure passenger transport version	高压物流版 High-pressure logistics version	低压物流版 Low-pressure logistics version	高压微卡 High-pressure microcard	低压微卡 Low-voltage microcard	备注 Remarks
	方向盘位置	Steering wheel position	左右舵可选 /Left or right steering optional	●	●	●	●	●
整车参数	长（mm）	Length	4500	●	●	●	货箱长度不同会有变化The length of the cargo box may vary.
	宽（mm）	Width	1680	●	●	●	●	●
	高（mm）	Height	1990	●	●	●	货箱高度不同会有变化 The height of the cargo box may vary.
	轴距（mm）	Wheelbase	2925	●	●	●	货厢尺寸不同会相应调整 The cargo compartment dimensions will be adjusted accordingly.
	货箱尺寸（mm）	Cargo box dimensions (mm)					长宽高mm 2500-3200170037	●
	前轮距/后轮距（mm）	Front wheelbase /rear wheelbase	1425/1435	●	●	●	●	●
	前后悬长（mm)	Front and rear overhang (mm)	660/910	●	●	●	货厢尺寸不同会相应调整 The cargo compartment dimensions will be adjusted accordingly.
	接近角/离去角（°）	Angle of approach/Departure	38/21	●	●	●	货厢尺寸不同会相应调整 The cargo compartment dimensions will be adjusted accordingly.
	整备质量（Kg）	Curb weight	1500	1350	●	1350	1320	1220
	最大总质量（Kg）	Maximum total mass	2500	●	●	●	●	●
	准乘人数	Riding the number of homo sapiens	7/9//9+2折叠 /7/9//9+2 folding		2座 2 seats	●	2座 2 seats	●
	最高车速（Km/h）	Maximum speed	100	71/80	●	71/80	80/100	71/80
	最大爬坡度	Maximum gradability	≥30%	≥20%	≥30%	≥20%	≥30%	≥20%
	最小离地间隙（mm）	Minimum ground clearance	≥180	●	●	●	●	●
	最小转弯直径（m）	Minimum turning radius	≤11	●	●	●	●	●
	续航里程	Cruise mileage(km)	260Km-310Km	160Km-330Km	260Km-310Km	160Km-330Km	260Km-310Km	160Km-330Km
标准配置/CHASSIS SPECIFICATION
类型	系统	Items	规格型号 Specification	规格型号 Specification	规格型号 Specification	规格型号 Specification	规格型号 Specification	规格型号 Specification
底盘配置	动力系统	Motor	30/60Kw,永磁同步/Riding the number of homo sapiens	20/40Kw,永磁同步/Riding the number of homo sapiens	30/60Kw,永磁同步/Riding the number of homo sapiens	20/40Kw,永磁同步/Riding the number of homo sapiens	30/60Kw,永磁同步/Riding the number of homo sapiens	20/40Kw,永磁同步/Riding the number of homo sapiens	电机功率可选 Motor power is optional
	前桥	Front axle	盘式Disc type	●	●	●	●	●
	后桥	Rear axle	鼓式Drum type	●	●	●	●	●
	后桥	Rear axle	速比 Speed ratio 10.5	●	●	●	●	●
	悬架系统	Suspension	前独立悬架，后板簧悬架 Front independent suspension, rear leaf spring suspension	●	●	●	●	●
	板簧片数	Number of leaf springs	6片 6 tablets	●	●	●	●	●
	轮胎	Tyre	175/70 R14C	●	●	●	●	●
	轮圈	Wheel rim	钢圈 Steel ring	●	●	●	●	●	可选铝合金 Optional aluminum alloy
	驻车制动	Parking brake	手制动 Parking brake	●	●	●	●	●
	转向系统	Steering system	电子助力 Electronic assistance	●	●	●	●	●
	ABS+EBD	ABS+EBD	有 yes	●	●	●	●	●
	能量回馈	Energy feedback	有 yes	●	●	●	●	●
	坡起和蠕动功能	Hill start and creep function	有 yes	●	●	●	●	●
	随车工具	Tool kit	随车工具/灭火器/警示牌等On-board tools/ fire extinguisher/warning sign, etc.	●	●	●	●	●
车身配置/BODY SPECIFICATION
	遮阳板	Sun visor	主副驾各1个	Each driver is a master and a passenger
	座椅	chair	主驾手动四向调节，织物座椅面料 Manual four-way adjustment for the driver's seat, fabric upholstery material.	●	●	●	●	●
	外后视镜	Exterior rearview mirror	手动可调 Manual, adjustable	●	●	●	●	●
	内后视镜	Interior rearview mirror	有 Yes	●	●	●	●	●
	车门	car door	左右前门、中滑门、后掀门Left front door, right front door, center sliding door, rear liftgate	●	●	●	左右前门 Left and right front doors	●
	车窗	car window	电动车窗 Power windows	●	●	●	●	●
	油漆	Paint	白色车漆（可选其他颜色）White paint (other colors optional)	●	●	●	●
电气配置/ELECTRICAL SPECIFICATION
电气配置	电池组（磷酸铁锂）	Battery pack (lithium iron phosphate)	24 Kwh	续航 Range 160Km-220Km		续航 Range160Km-220		续航 Range160Km-220
			28 Kwh	续航Range 185Km-255Km		续航Range 185Km-255Km		续航Range 185Km-255Km
			36.2Kwh	续航Range 240Km-330Km		续航Range 240Km-330Km		续航Range 240Km-330Km
			38.70Kwh 续航Range 240Km-290Km		续航Range 240Km-290Km		续航Range 240Km-290Km
			41.82Kwh 续航Range 260Km-310Km		续航Range 260Km-310Km		续航Range 260Km-310Km
			换电 40Kwh 续航Range 250Km-300Km		续航Range 250Km-300Km		续航Range 250Km-300Km
	空调	AC	有YES	●	●	●	●	●
	蓄电池	12V/Battery	12V	●	●	●	●	●
	雨刮器	Wiper	有YES	●	●	●	●	●
	近光灯	dipped headlight	有YES	●	●	●	●	●
	远光灯	high beam	有YES	●	●	●	●	●
	后雾灯	Rear fog lamp	有YES	●	●	●	●	●
	仪表	Instruments	有YES	●	●	●	●	●
	USB充电接口	USB	1个	●	●	●	●	●
	视听系统	Audiovisual system	液晶中控大屏 LCD central control touchscreen	收音机radio	液晶中控大屏 LCD central control touchscreen	收音机radio	液晶中控大屏 LCD central control touchscreen	收音机radio
	倒车影像	Rearview camera image	有YES		有YES		有YES
	低速行人报警系统	Low-speed driving Homo sapiens alarm system	有YES	●	●	●	●	●
	充电口	Charging receptacle	国标交流、直流双充电口National standard AC and DC dual charging ports	国标直流充电口 National standard DC charging port	国标交流、直流双充电口National standard AC and DC dual charging ports	国标直流充电口 National standard DC charging port	国标交流、直流双充电口National standard AC and DC dual charging ports	国标直流充电口 National standard DC charging port	可选欧标Optional European standard
电池组容 capacity		续航里程 Driving range	车型FOB青岛港报价 Vehicle model FOB Qingdao Port quotation
价格	24 Kwh	续航 Range 160Km-220Km		USD 11600/台		USD 11300/台		USD 12100/台
	28 Kwh	续航Range 185Km-255Km		USD 11900/台		USD 11650/台		USD 11450/台
	36.2Kwh	续航Range 240Km-330Km		USD 12600/台		USD 12300/台		USD 12450/台
	38.70Kwh	续航Range 240Km-290Km	USD 14000/台		USD 13600/台		USD 13200/台
	41.82Kwh	续航Range 260Km-310Km	USD 14300/台		USD 13900/台		USD 13500/台
	换电 40Kwh	续航Range 250Km-300Km	USD 14850/台	USD 13500/台	USD 14500/台	USD 13300/台	USD 14200/台	USD 13450/台
车型类别 Category		电池容量Battery capacity	24 Kwh Range 160Km-220Km	28 Kwh Range 185Km-255Km	36.2Kwh Range 240Km-330Km	38.70Kwh Range 240Km-290Km	41.82Kwh Range 260Km-310Km	换电 40Kwh 续航Range250Km-300Km

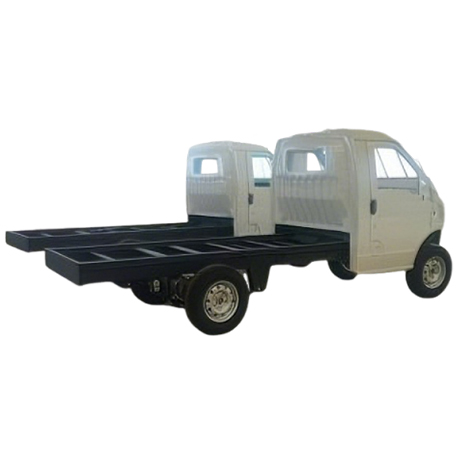

专用车	微卡底盘	Microcard chassis	USD 11700/台	USD 11050/台	USD 12050/台	USD 12800/台	USD 13100/台	USD 13800/台

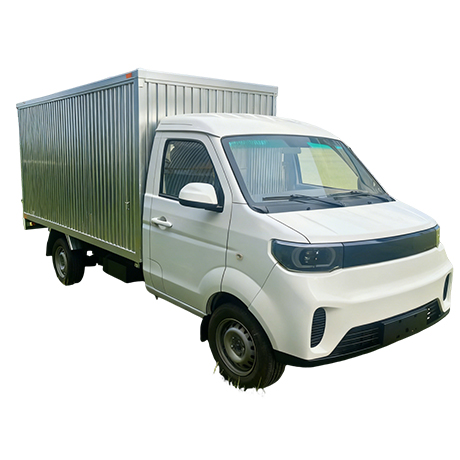

	厢式微卡	Van-type micro truck	USD 12400/台	USD 11750/台	USD 12750/台	USD 13500/台	USD 13800/台	USD 13750/台
	微卡冷藏车	Micro-card refrigerated truck			USD 18600/台	USD 19350/台	USD 19600/台	USD 20300/台
	微卡餐车	Microcard food truck	USD 19000-25000/台	USD 19500-25500/台	USD 20000-26000/台	USD 21000-27000/台	USD 21000-27000/台	USD 21500-27500/台
	小VAN救护车	Little VAN Ambulance	USD 12000-15000/台	USD 12300-15300/台	USD 13000-16000/台	USD 14500-17500/台	USD 15000-18000/台	USD 15500-18500/台
价格政策 Price policy		标准车型定金30%，定制车型定金50%		Standard models require a 30% deposit, while customized models require a 50% deposit.
交付 Delivery		定金到账后60天交货验收，2周内办理交付出口报关手续交货		The goods will be delivered and accepted within 60 days after the deposit is received, and export customs clearance procedures for delivery shall be completed within 2 weeks.
质保/Warranty		整车的质保期为自交货之日起 120000 公里或 24个月，以先到者为准；		The warranty period for the entire vehicle is 120,000 kilometers or 24 months from the date of delivery, whichever comes first;
		电机、动力电池、电控的质保期为 20万公里或 60 个月，以先到者为准。		The warranty period for the motor, power battery, and electronic control system is 200,000 kilometers or 60 months, whichever comes first.
		易损件保修期为 50000 公里或 6 个月，以先到者为准。		The warranty period for wear parts is 50,000 kilometers or 6 months, whichever comes first.
		小批量采购客户及不含售后客户售后免责，但给与技术及部件采购支持		Small-batch procurement customers and customers without after-sales service are exempt from after-sales liabilities, but technical and component procurement support will be provided.
